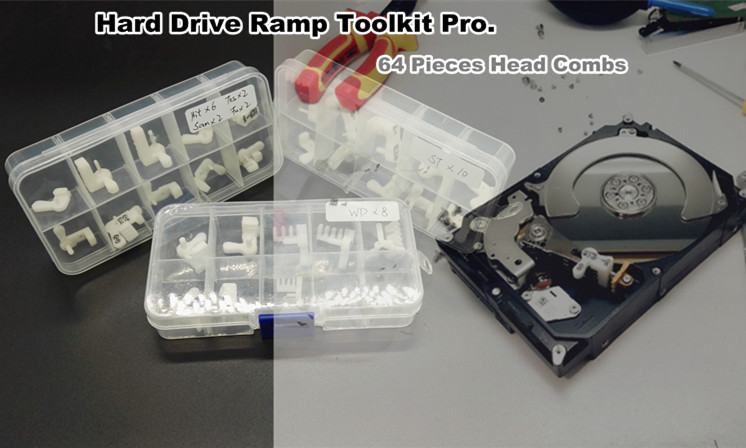

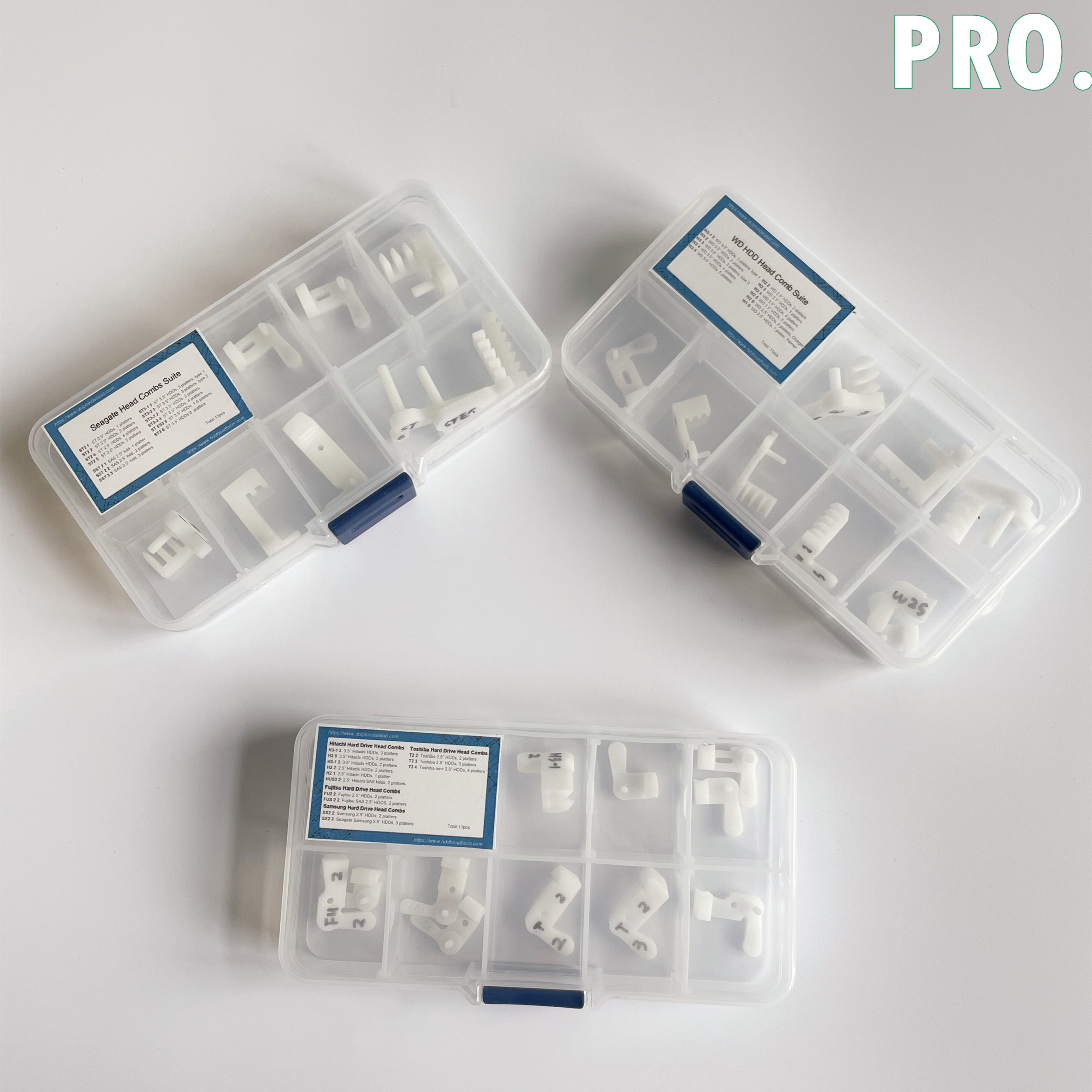

Hard Drive Ramp Toolkit Pro.

Description

Hard Drive Ramp Toolkit Pro. is one new head comb suite manufactured mainly for new hard drives whose heads park on a ramp out of the platter.

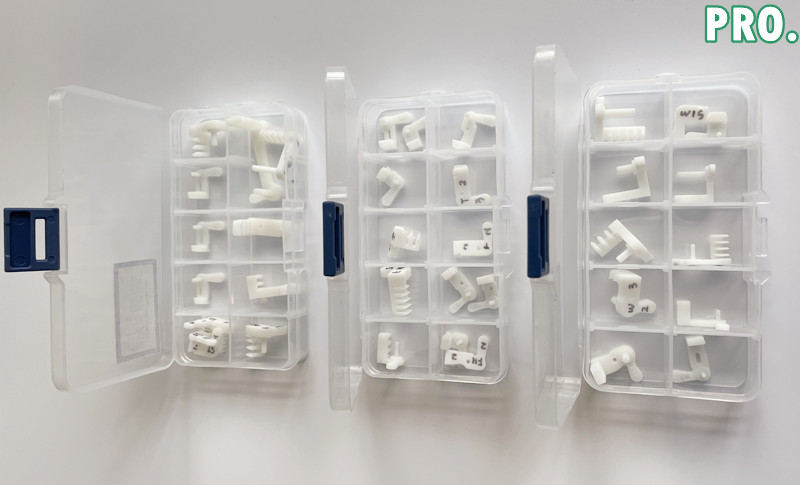

Hard Drive Ramp Toolkit Pro. contains head combs of Seagate, WD, Hitachi, Toshiba, Samsung, Fujitsu SATA and SAS hard drives and there’re 52 different head combs, two pieces for each different head comb and totally 104 pieces. The following head combs are included:

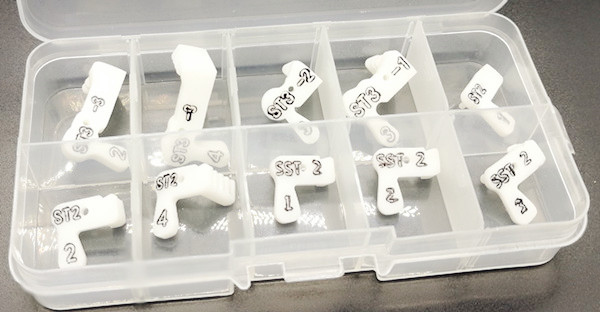

Seagate Hard Drive Ramp Toolkit:

Newly added head replacement tools on Dec. 17, 2024

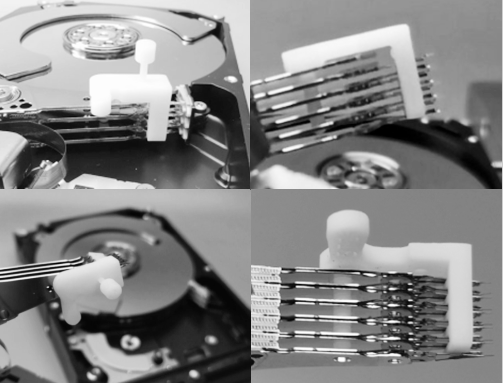

ST331: 1 platter, ST1000DM003, parking on external parking ramp;
ST6E: ST8000NM0055, 6 platters;

Newly added head replacement tool on July 12, 2024
ST2-3 for ST2000LM005, Seagate Samsung HDD, 3 platters/6heads;

Newly added head replacement tool on June 27, 2024
STH82 for Seagate 12TB helium drives, ST12000NM0007
ST5E for Seagate 8TB helium drives ST8000NM000A

Newly added head replacement tool on March 17, 2024
STH81 for Seagate 10TB helium drives, ST10000NM0478, 8 platters, 16 heads
STH9 for Seagate 14TB 16TB helium drives, 9 platters, 18 heads

Newly added Head comb December 18th, 2018:

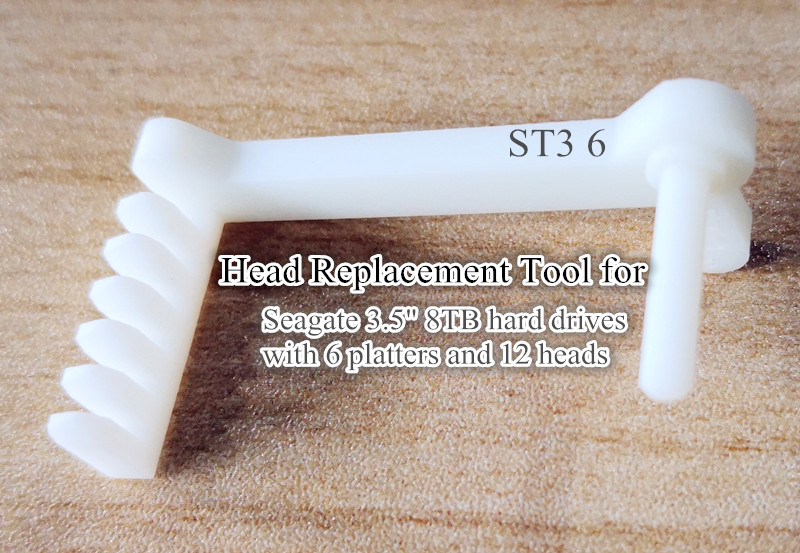

ST3 6: Seagate 3.5″ 8TB hard drives with 6 platters and 12 heads

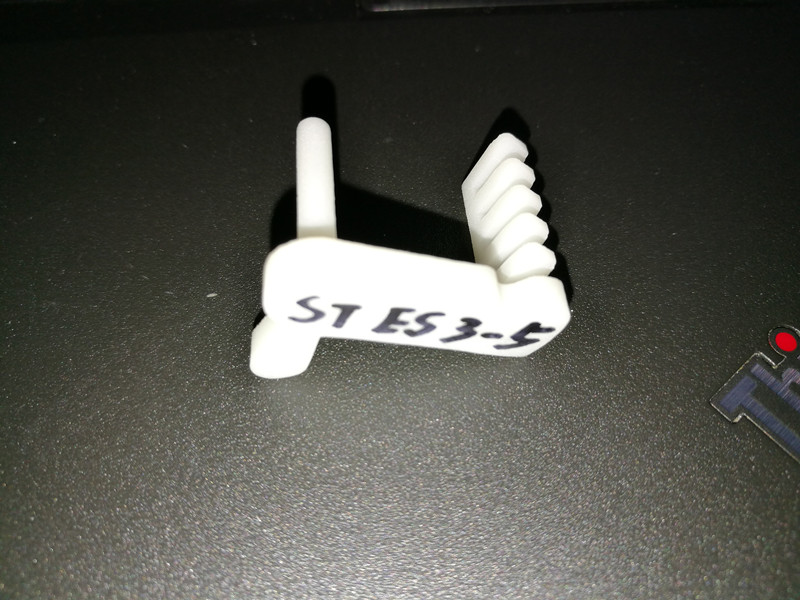

ST ES3-5 (newly added on Nov.13 2017): Seagate Enterprise 3.5″ hard drives, support 1-5 platters, the ES.3 1TB-3TB hard drives have been tested.

ST2 5: Seagate 2.5″ HDDs, 5 platters-ST4000LM016
ST2 4: Seagate 2.5″ HDDs, 4 platters
ST2 2: Seagate 2.5″ HDDs, 2 platters
ST2 1: Seagate 2.5″ HDDs, 1 platters
ST3-3 2: Seagate 3.5″ HDDs, 2 platters
ST3-3 4: Seagate 3.5″ HDDs, 4 platters
ST3-1 3: Seagate 3.5″ HDDs, 3 platters, type 1
ST3-2 3: Seagate 3.5″ HDDs, 3 platters, type 2
SST 2 1: SAS 2.5″ hdd, 1 platter;
SST 2 2: SAS 2.5″ hdd, 2 platters;
SST 2 3: SAS 2.5″ hdd, 3 platters；

Newly added head replacement combs Jan.3rd, 2024：
SST24: Seagate SAS HDD, ST1800MM0129, 1.8T, ST2400MM0129, 2.4T
ST3-5: Seagate ST4000NM0035, 4TB, 5 platters;
ST3-4: Seagate ST8000NM0178, 8TB, 4 platters;

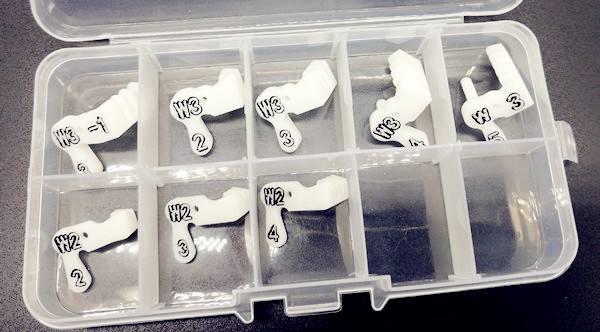

Western Digital Hard Drive Ramp Toolkit:

Newly added head replacement tool on Dec. 17, 2024
W3S1: WD 810011, 2T, 1 platter;
W3S3: WD 810011, 3 platters, 4T, 6T;
W38: WD120EDAZ, 8 platters, helium drives

W3 5: WD 6TB HDD head comb, 3.5″ HDDs, 5 platters 10 heads;
W3 4: Western Digital 3.5″ HDDs, 4 platters
W3-1 3: Western Digital 3.5″ HDDs, 3 platters, type 1
W3 3: Western Digital 3.5″ HDDs, 3 platters, type 2
W3 2: Western Digital 3.5″ HDDs, 2 platters
W2 4: Western Digital 2.5″ HDDs, 4 platters
W2 3: Western Digital 2.5″ HDDs, 3 platters
W2 2: Western Digital 2.5″ HDDs, 2 platters
W2 5: Western Digital 2.5″ HDDs, 5 platters, WD40NMZW, WD30NMVW 5 platters 10 heads, Newly added Head Comb Jan.13, 2018
W2 S: Western Digtial 2.5″ HDDs, 2 platters, for WD 800065, 800067, 810003 charger hard drives (added on April 1st, 2021);
W1 S: For WD SMR Palmer HDD 800066 800069 1 platter 2 heads (Newly added Head Comb Jan.11, 2022)
W3 5 S: Western Digital desktop hard drive, 5 platters, WD4002FYYZ(Newly added WD Head Comb July 14, 2023)
Newly added Western Digital Head Comb for WD 6T 800001 and 4T 810011 on November 1 2023:
W3S, example supported models-WD60PURX-64T0ZY0; WD40EJRX-89AKWY0

W3-9: WD helium hdd of 10T-16T, 9 platters（Newly added head replacement combs Jan.3rd, 2024）;

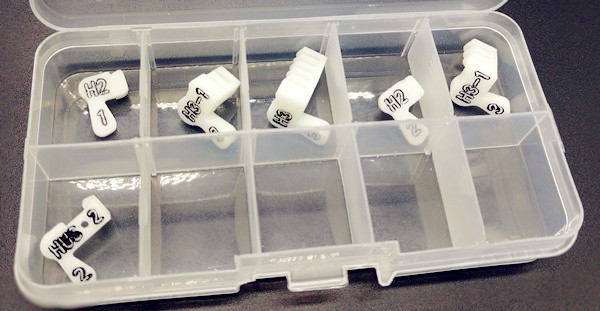

Hitachi Hard Drive Ramp Toolkit:

H3-1 3: 3.5″ Hitachi HDDs, 3 platters
H3 5: 3.5″ Hitachi HDDs, 5 platters
H3-1 2: 3.5″ Hitachi HDDs, 2 platters
H2 2: 2.5″ Hitachi HDDs, 2 platters
H2 1: 2.5″ Hitachi HDDs, 1 platter
HU2 2: 2.5″ Hitachi SAS hdds, 2 platters.

Toshiba Hard Drive Ramp Toolkit:

T2 2: Toshiba 2.5″ HDDs, 2 platters
T2 3: Toshiba 2.5″ HDDs, 3 platters
T2 4: Toshiba 2.5″ HDDs, 4 platters, Newly added Head Comb Jan.13, 2018

Newly added Toshiba Head Combs July 14, 2023:
T312: Toshiba 3.5″ HDDs, 1/2 platters, HDS721010CLA332
T3-3: Toshiba 3.5″ HDDs, 3 platters
DT01ACA100, DT01ACA200, DT01ACA300, DT01ABA100V, DT01ABA200V, DT01ABA300V, etc

Newly added Toshiba hdd head replacement tool on November 1 2023: T21, for laptop toshiba hdds with 1 platter, please note the existing T22 is used for 1-platter toshiba laptop hdds for many cases;

T3-7: Toshiba desktop hdd, 7 platters, MG06ACA800E, 8TB（Newly added head replacement combs Jan.3rd, 2024）;



Fujitsu Hard Drive Ramp Toolkit:
FU2 2: Fujitsu Head Combs: 1 piece, Fujitsu 2.5″ hdds, 2 platters
FUS 2 2: Fujitsu SAS 2.5″ HDD, 2 platters, 4 heads （S26361-F4006-L114 ）

Samsung Hard Drive Ramp Toolkit:
SX2 2: Samsung Head Combs: 1 piece, Samsubg 2.5″ hdds, 2 platters
SX2 3: Seagate Samsung 2.5″ HDD, 3 platters, ST2000lm003 2tb laptop drive.
