DT01ACA100 Capacity 0 HDD Firmware Repair and Data Recovery Steps

This is one successful data recovery case study of  Toshiba Hitachi HDD DT01ACA100 with capacity 0 failure.

Patient HDD ID:

Family-7210DLE6
Model ID: DT01ACA100

Failure Symptoms

Capacity is 0 and data area is not accessible

Required hdd repair tools and data recovery tools to recover the lost data from DT01ACA100 patient HDD:

DFL Hitachi HDD Firmware Repair Tool
DFL DDP data recovery tool

HDD Repair and Data Recovery Steps

01: Connect the patient DT01ACA100 hdd to DFL Hitachi hdd repair hardware and backup the firmware modules, rom and nvram;
02: Go to FW Operations>Initialize HDD>Initialize Microcode, users just select the fw backup path and then click ok to run the auto repair;
03: Power off and on the patient HDD;

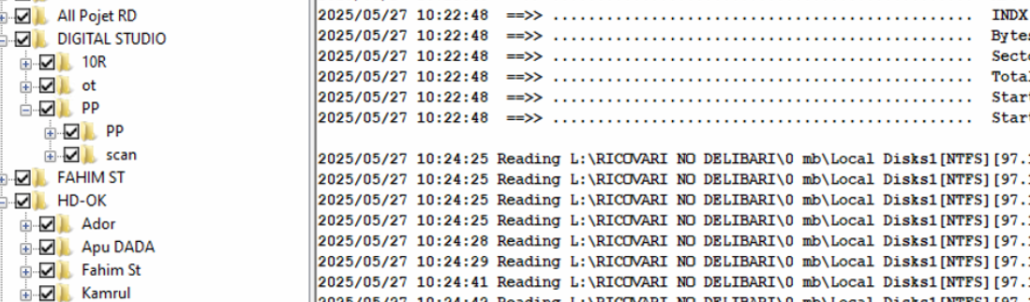

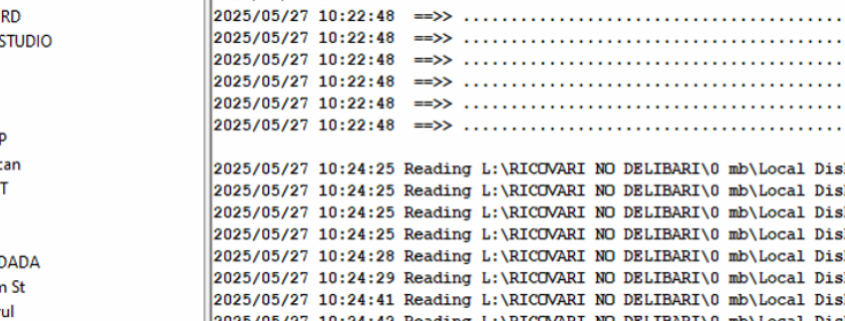

04: Open DFL DDP data recovery software and the user found the lost partition and folders.

Any question is welcome to sales[at]dolphindatalab.com.
