WD10EZRX-00D8PB0 Data Recovery Steps


This is one successful data recovery case study from one Dolphin user in Vietnam by Dolphin remote data recovery system.

When the patient drive was received, the drive was not detected at all and users even failed to read rom reporting ROM length error and no model or other ID information was detected.

Patient HDD ID:

Model number: WD10EZRX-00D8PB0
Capacity: 1TB

To fix this firmware corrupted hard drive, users need to use DFL-SRP for WD firmware repair tool.

Data Recovery Steps:

1, Short connect tv 9 and tv 10 to get the driver ready and enter the DFL WD firmware repair program;
2, Backup important firmware modules;
3, Backup ROM;
4, Bypass ROM;
5, Power off and on and load loaders automatically using DFL-WD;
6, Click Slow Fix under Common>Common Repair menu;
7, Write back original ROM;
8, Power off and on and switch to DFL-DDP data recovery program;

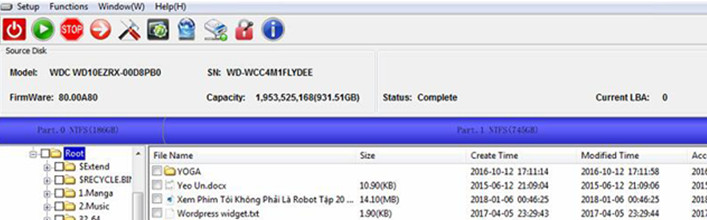

9, All lost data was 100% recovered by DFL-DDP.
