FAIL Servo Op=0100 Resp=0003 Doesn’t Always Mean Head Failure

,

FAIL Servo Op=0100 Resp=0003 is one common error message in Seagate patient hard drives with head or platter surface damage. But sometimes, this error outputs in the COM terminal and the drive is normally accessed for data recovery and sometimes it is caused by firmware corruption.

When this error keeps coming and cannot enter F3 T>, it is usually head failure. When this error comes with other error messages, users need to diagnose the patient HDD further to find out the failure reason. The following is one working hdd with both firmware area and data area normally accessed.

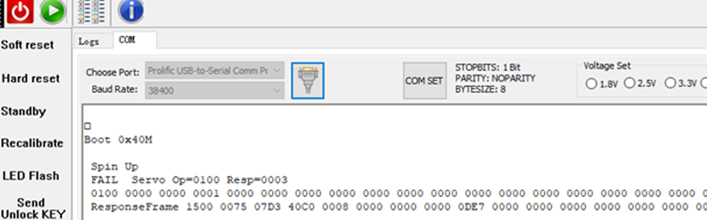

Boot 0x40M

Spin Up
FAIL Servo Op=0100 Resp=0003
0100 0000 0000 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000
ResponseFrame 1500 0075 07D3 40C0 0008 0000 0000 0000 0DE7 0000 0000 0000 0000 0000 0000 0000 EED0 4629 8EC6 E8FE CF10 7665 EB63 6857 F5E1 DC4D 0000 007F 0006 0000 001B 0004 0010

Trans.

Spin Up

SpinOK
TCC:001B

RECOV Servo Op=0900 Resp=0005

PreampFaultStatus = 0000

PreampFaultStatus = 0000

PreampFaultStatus = 0000

PreampFaultStatus = 0000

PreampFaultStatus = 0000
SIM Error 1002 LBA 00000000000352F6 FD FC37F30A
RW Error C4440080WriteDCOInfo FAILED during Initialization
Drive AMPS Configuration has been modified from compiled defaults.
Drive must be re-initialized to controller firmware defaults by re-downloading controller firmware
DO NOT SHIP WITHOUT FIRST RE-DOWNLOADING CONTROLLER FIRMWARE OR RESETTING TO DEFAULTS!

PreampFaultStatus = 0000

PreampFaultStatus = 0000

PreampFaultStatus = 0000
PreampFaultStatus = 0000
SIM Error 1002 LBA 00000000000405F5 FD FC383137
RW Error C4440080
PowerState = IDLE2

(H) SATA Reset

SSPSaveSettings

SSPRestoreSettings

Send Status: COMRESET seen

From above FAIL Servo Op=0100 Resp=0003 error, we can see it is not always head failure. Any question is welcome to sales@dolphindatalab.com or add Dolphin Skype ID: dolphin.data.lab
